CNC heart box, stepped profile lid, STL and vector files • JB1

€9,99

CNC heart box, stepped profile lid, STL and vector files • JB1

Name: CNC heart box, stepped profile lid, STL and vector files • JB1
Brand: bfwcnc
Price: 9.99 EUR
Availability: InStock

€9,99

BFW files are built for execution, not just shape. Clean geometry, ready to load and run. Message me when you're stuck. You get a direct answer from someone who has run production CNC on industrial 3 to 5-axis machines.

Digital files only. No physical item will be shipped.

Formats: DXF, SVG, AI, EPS, STL

You receive:
- Two STL files: one for the lid and one for the base (3D carving on CNC router
- Vector files DXF, SVG, AI, EPS
- PDF guide: key dimensions, contour selection, bit, feeds and speeds.

Compatible with: CNC Router (pocketing toolpaths for the base, 3D carving toolpaths for the lid), 3D Printer

Not compatible with: laser cutters (requires 3D toolpaths for the lid)

Note: The lid STL requires VCarve Pro, Aspire, or
equivalent for 3D carving toolpaths.

Supported software: VCarve Pro, Aspire, Fusion 360, Carveco,
Carbide Create Pro, AutoCAD, Cura, PrusaSlicer

Different machine or software? Send a message.
The file can be adapted.

Base dimensions:
Width: 155mm (6.1")
Depth: 137mm (5.4")
Height: 57mm (2.2") (closed)

JB1, JB3, and JB5 share the same base. The lids are
interchangeable across all three. Cut the base once and
choose your lid design, or build all three.

Scaling: scale all components proportionally. For non-standard
sizes or lid thickness changes, send a message.
Custom sizing available.

Digital product only
Files are delivered instantly after purchase

Please check that the included formats match your workflow before purchase

You may use the files to create physical products for personal or commercial use.
You may not resell, share, create derivative designs or redistribute the digital files.

Message me with what you're trying to do, your machine, and your material. You get a direct answer from someone who has run production CNC on industrial 3 to 5-axis machines, applied to hundreds of maker projects.

Creator Lab members bring questions into the community and get answers from me and from other CNC machine owners running the same equipment. $5/month, $5 File Credit included.

For changes bigger than a message can handle, Custom Work picks it up.

Want someone to build it for you entirely? Order a finished piece.

Heart jewelry box CNC files for CNC routers and 3D printers

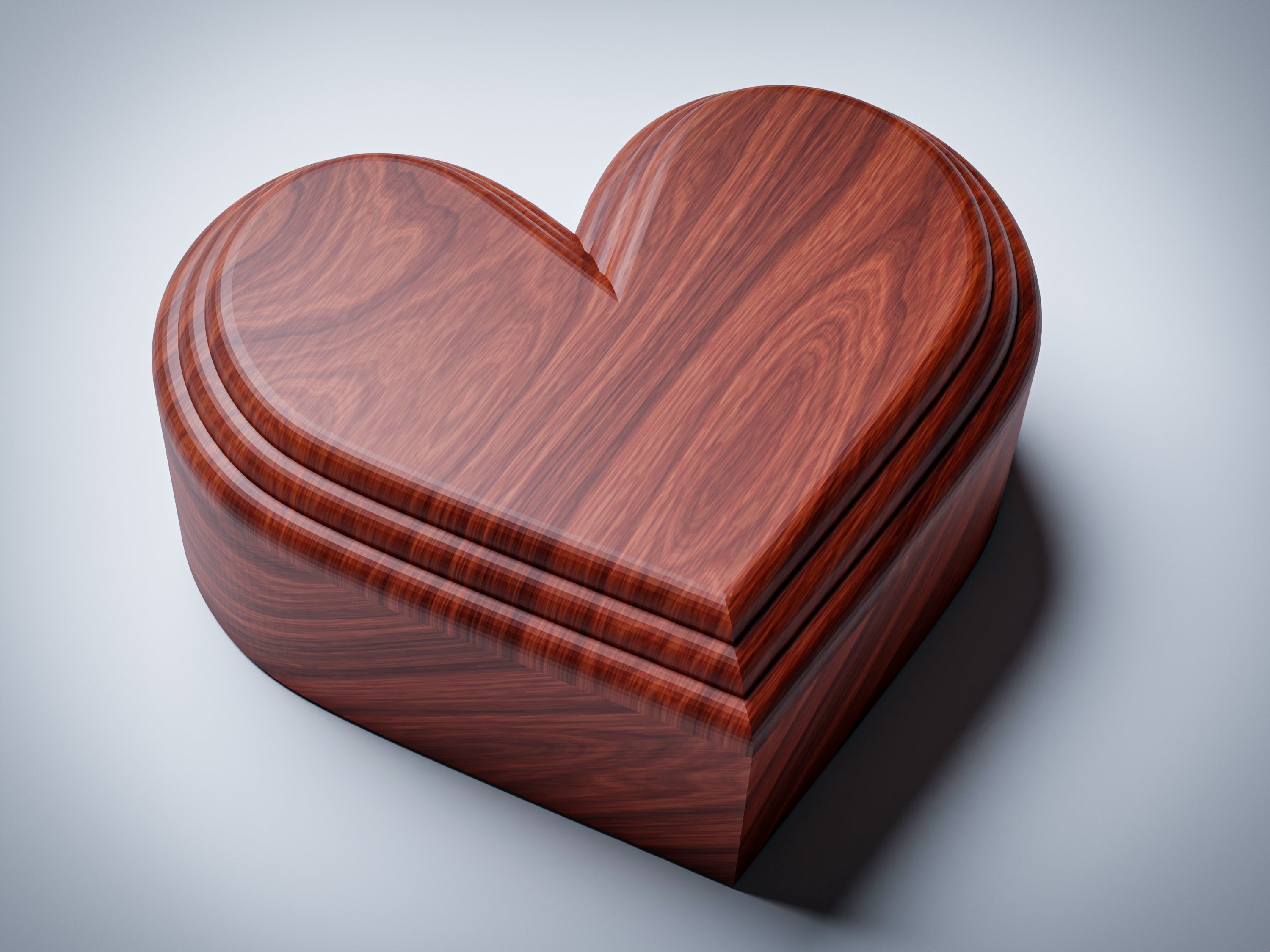

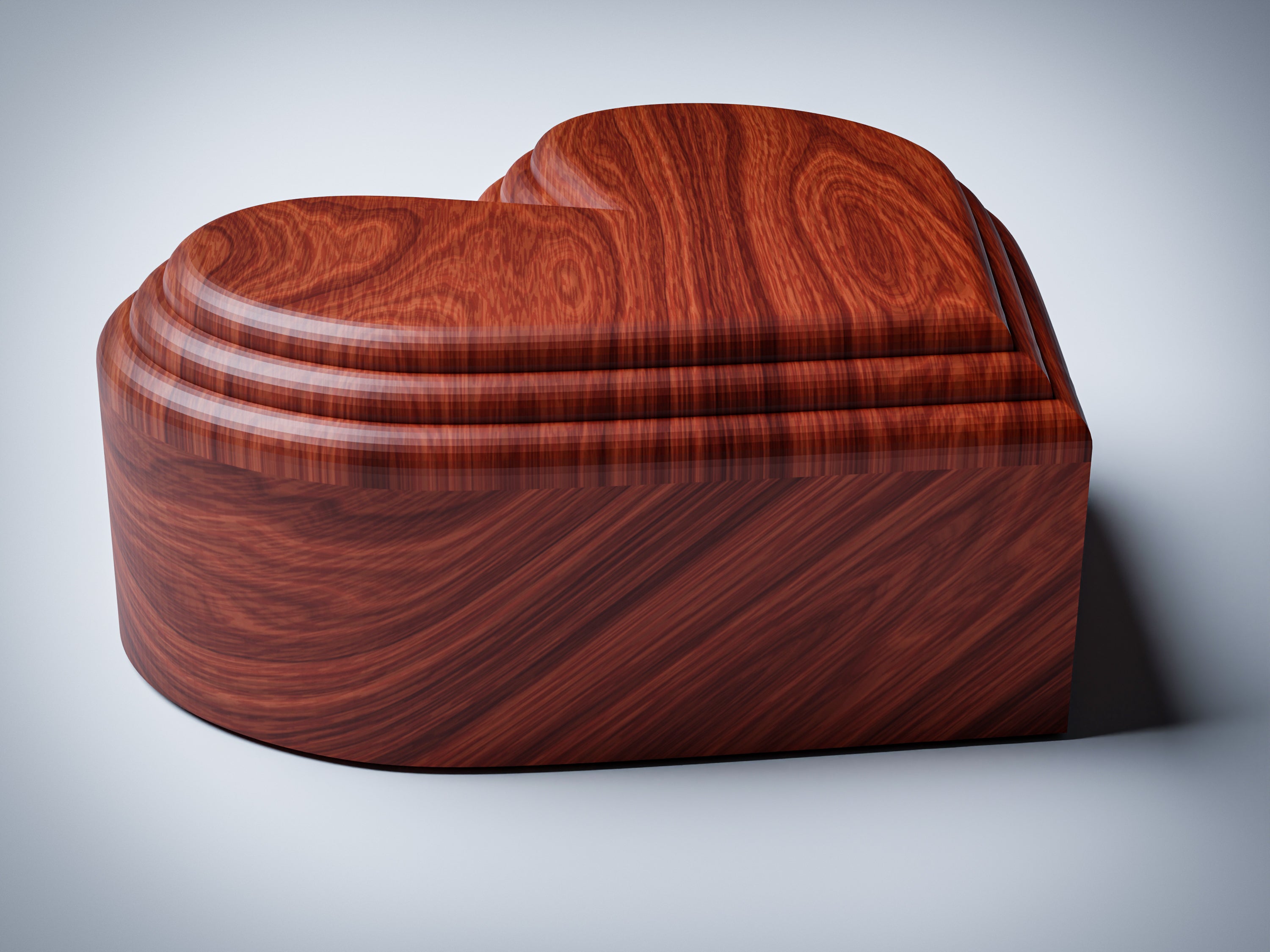

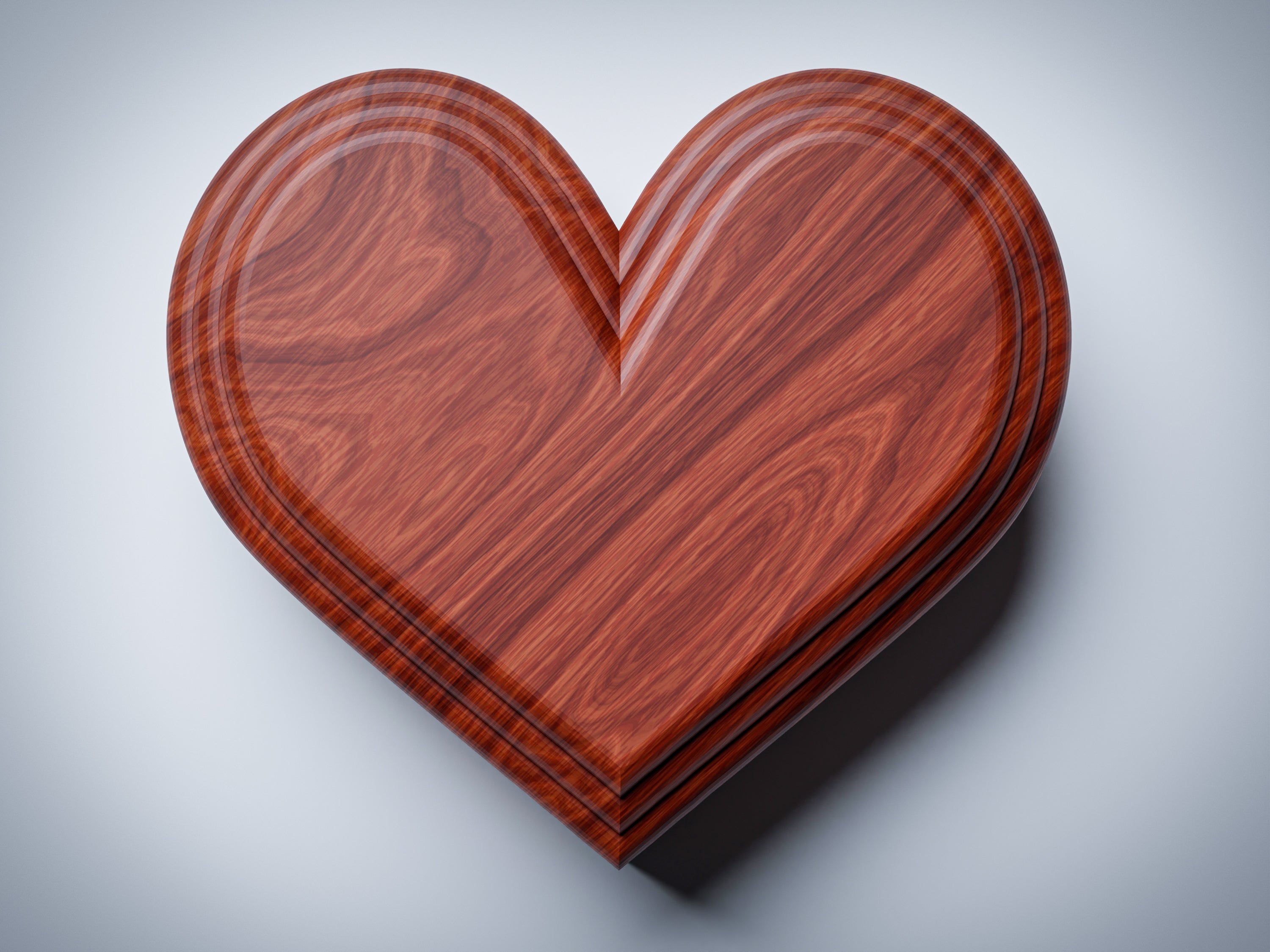

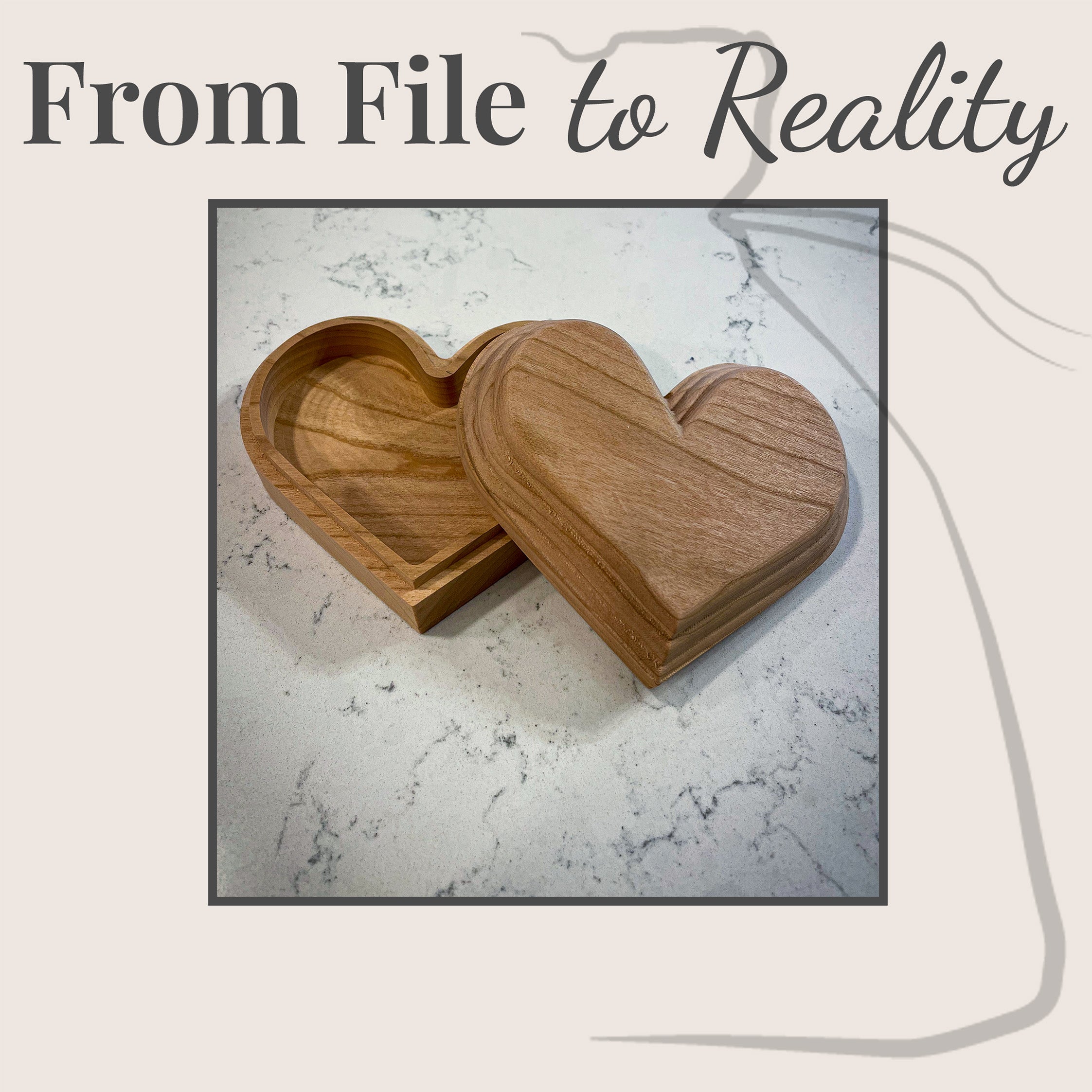

Craig cut JB1 in hardwood on his CNC router. He was new to CNC and had questions. I answered each one, sent extra resources, and Craig completed the box clean on his first run. Mike cut it in a different wood, adjusted the file, no issues. JB1 shares its base with JB3 and JB5. The lids swap between all three. The video shows how that works. JB1 is the full file: DXF, SVG, AI, EPS, and STL in one download, with a PDF guide covering contour selection, 3D carving setup, and pocketing flow. Heart-shaped box, 155×137×57mm. Concentric stepped profile on the lid. Smooth interior cavity in the base. Works on CNC routers and 3D printers. Compatible with VCarve Pro, Aspire, Fusion 360, Carveco, Carbide Create Pro, and AutoCAD. If you get stuck on toolpath setup or material choice, send a message. I've run production CNC on industrial 3 to 5-axis machines for years before BFW. Creator Lab handles the ongoing questions for $5/month.
