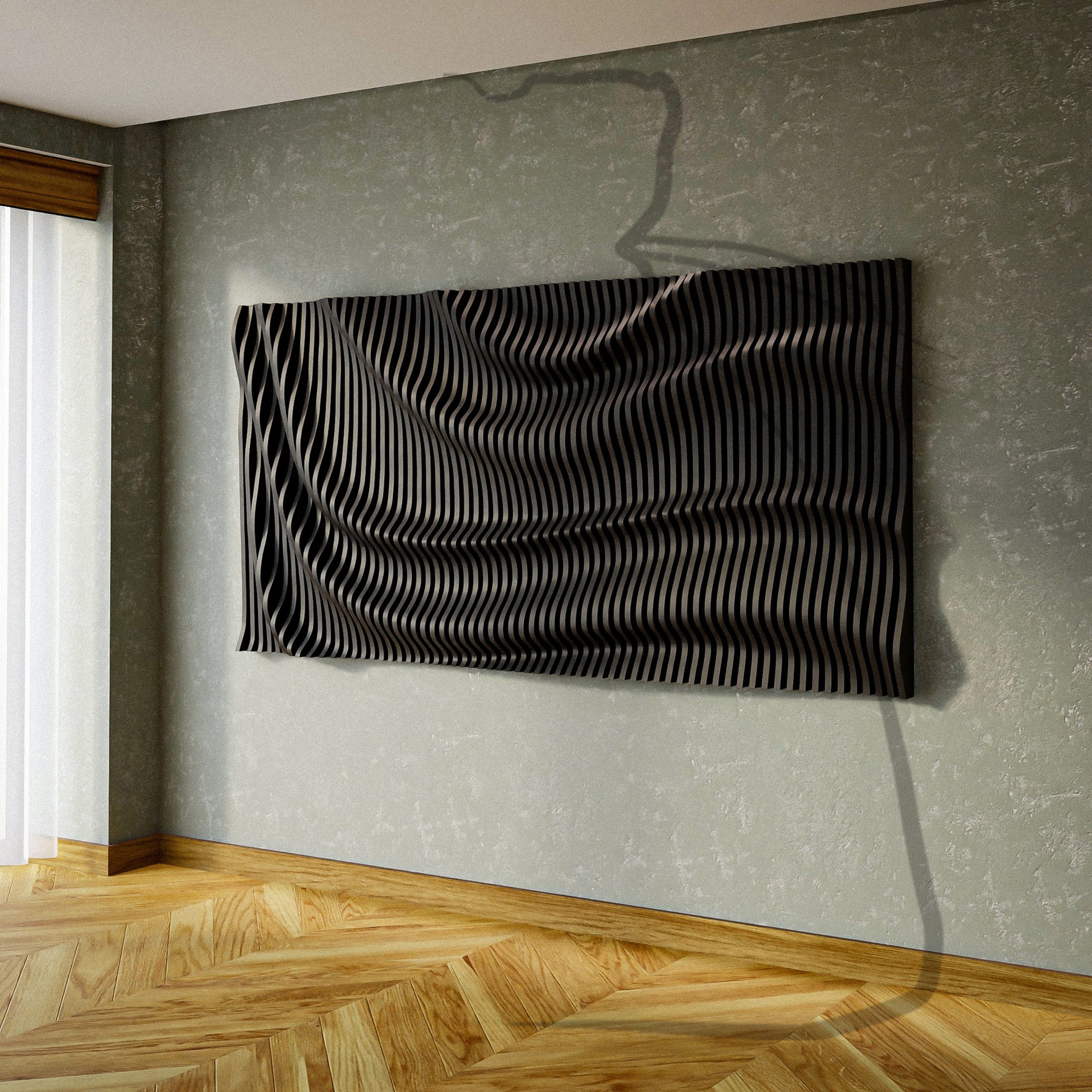

  • PP6 parametric wave wall panel solid black painted finish render, diagonal sweep with deep shadow contrast

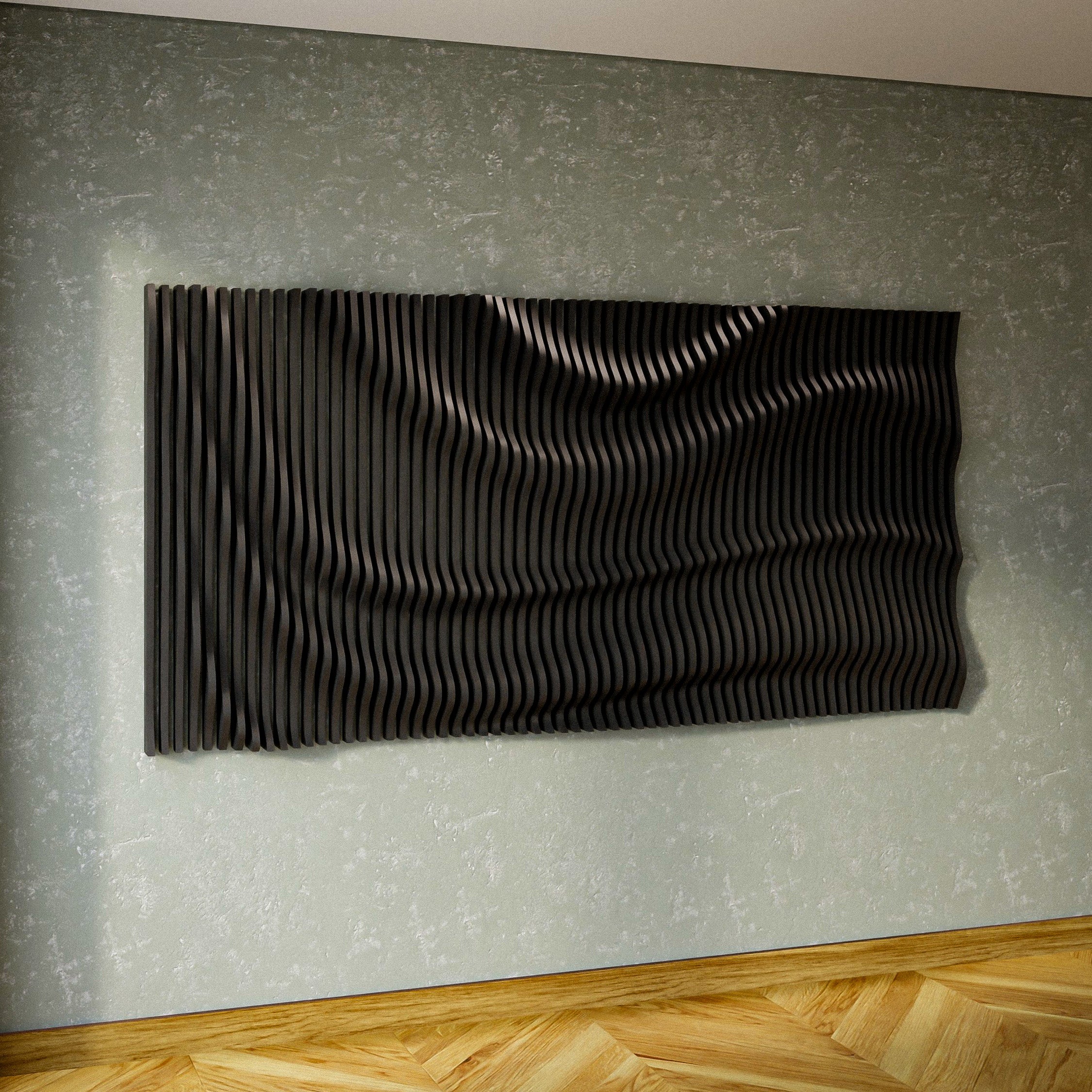

  • PP6 parametric wave panel dark finish, slight angle orientation showing the wave motion

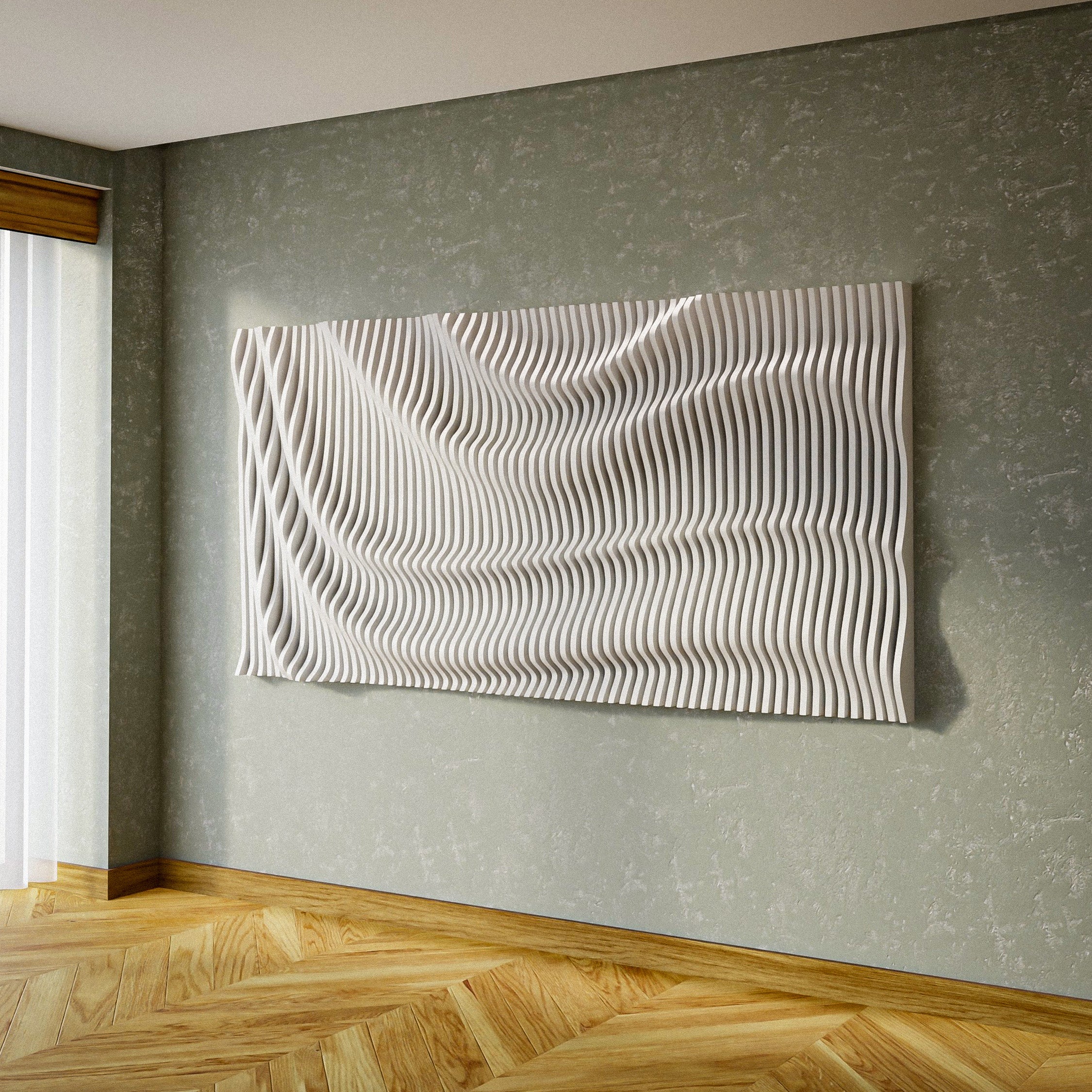

  • PP6 parametric wave wall panel, white finish render, diagonal wave sweep corner to corner, living room with herringbone floor

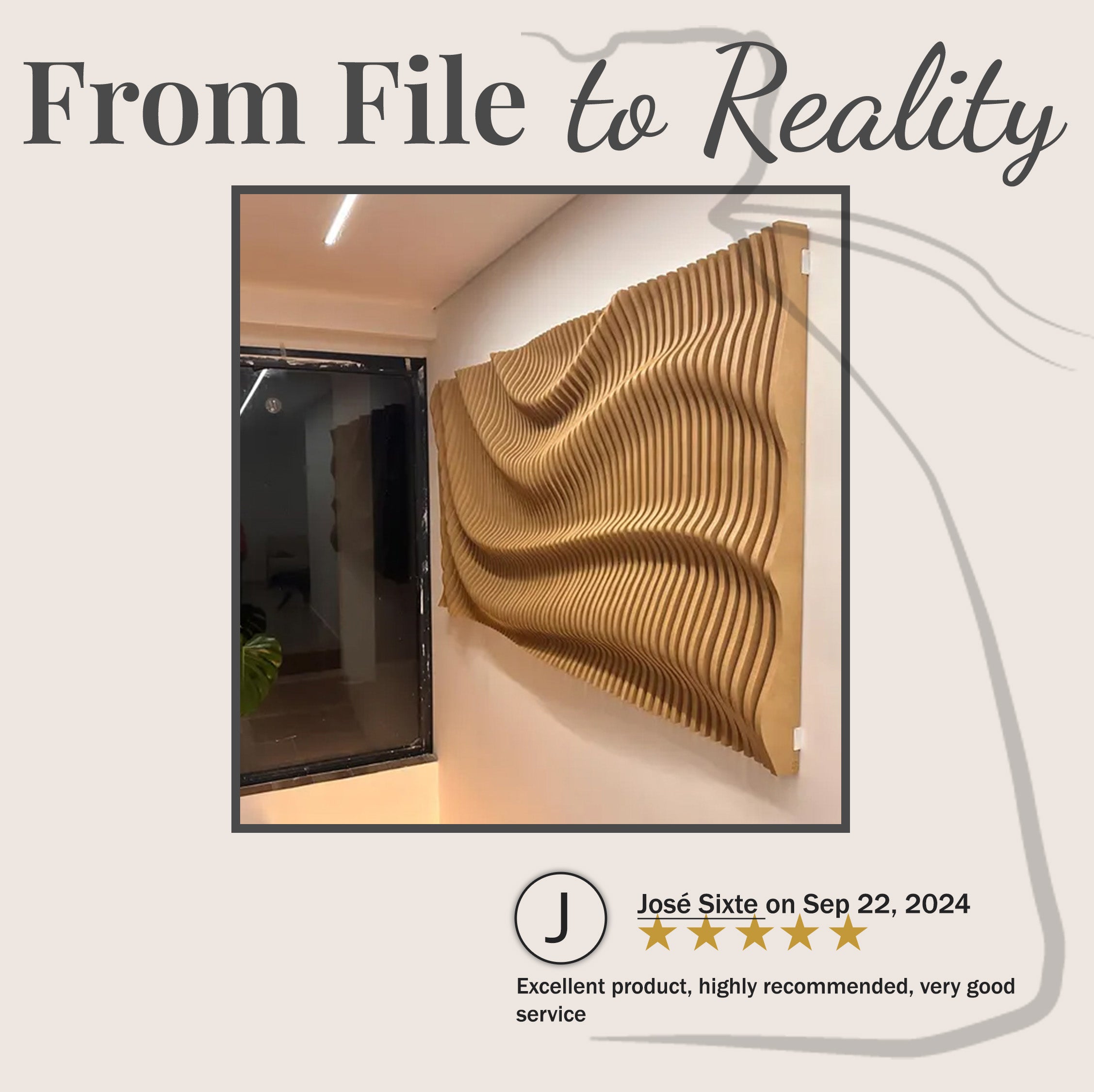

  • PP6 parametric wave wall art built by CNC maker - natural wood finish, residential white wall with window, with review prizing the BFW shop owner.

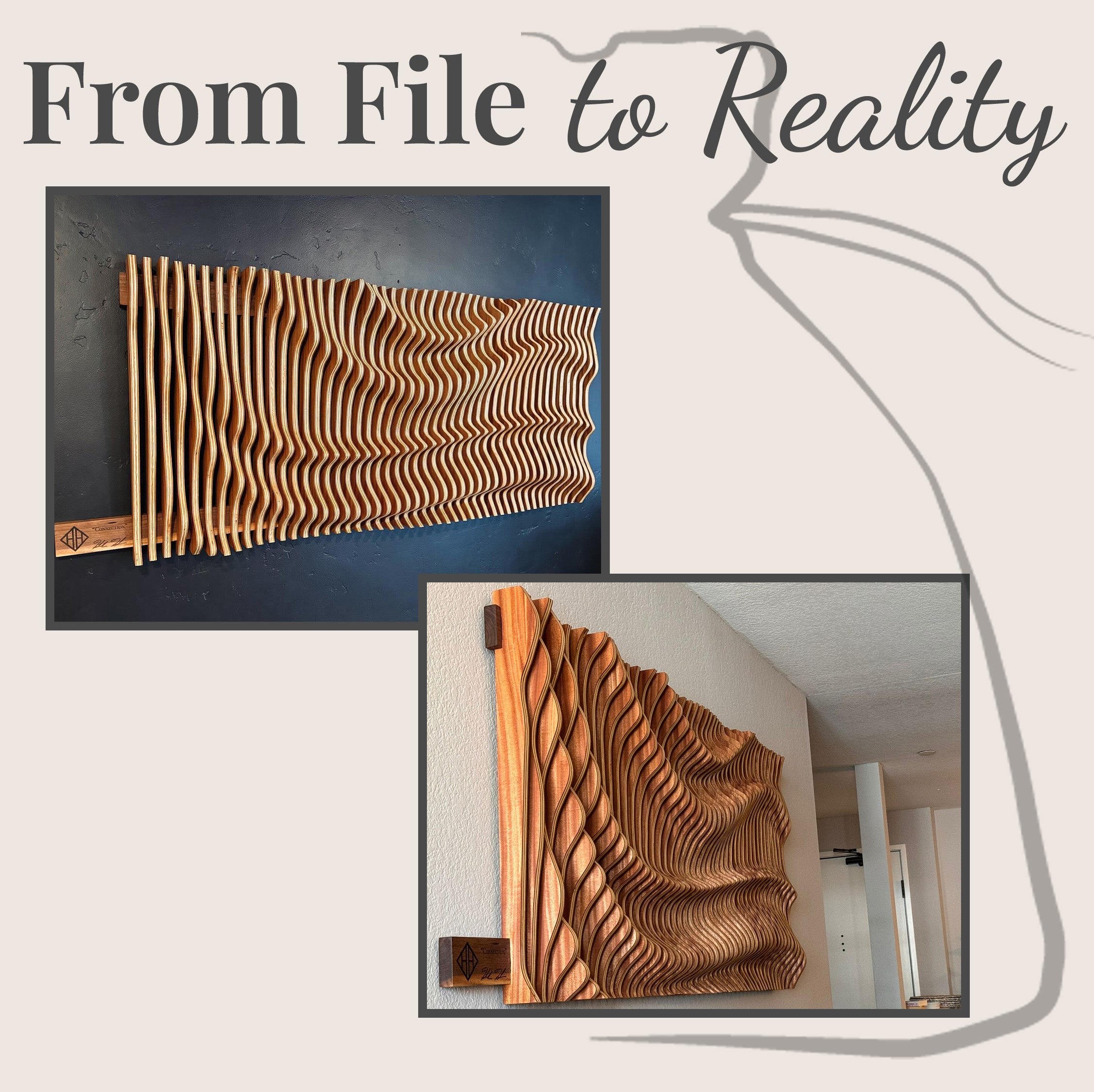

  • PP6 parametric wave wall art built by BFW customer, natural wood finish, residential dark wall installation

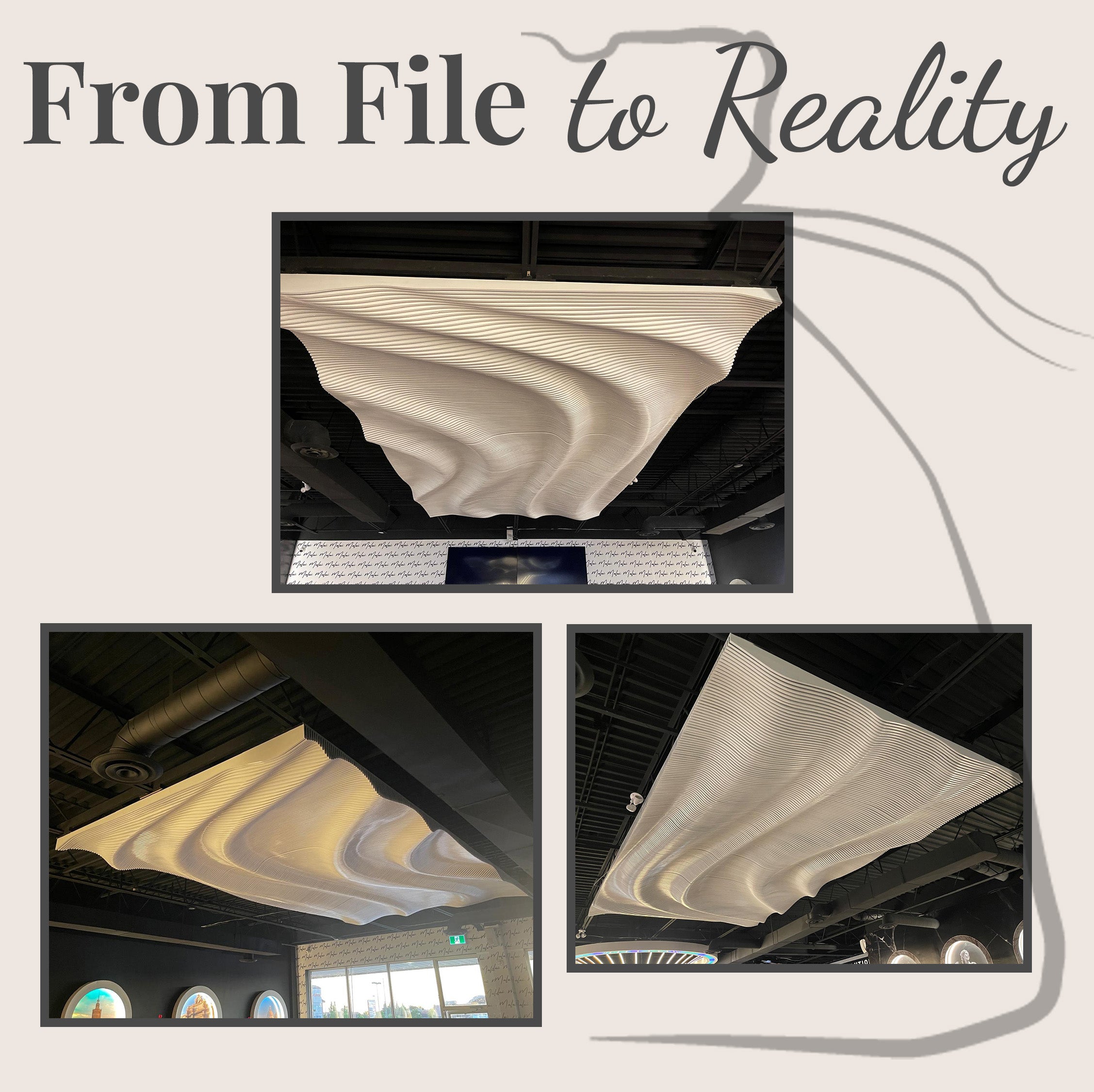

  • PP6 parametric wave panels installed as suspended ceiling feature white painted, restaurant installation
  • A 3D-rendered parametric panel with dimension lines and a bottom text panel showing artwork dimensions in millimeters thickness and spacing and sheet count

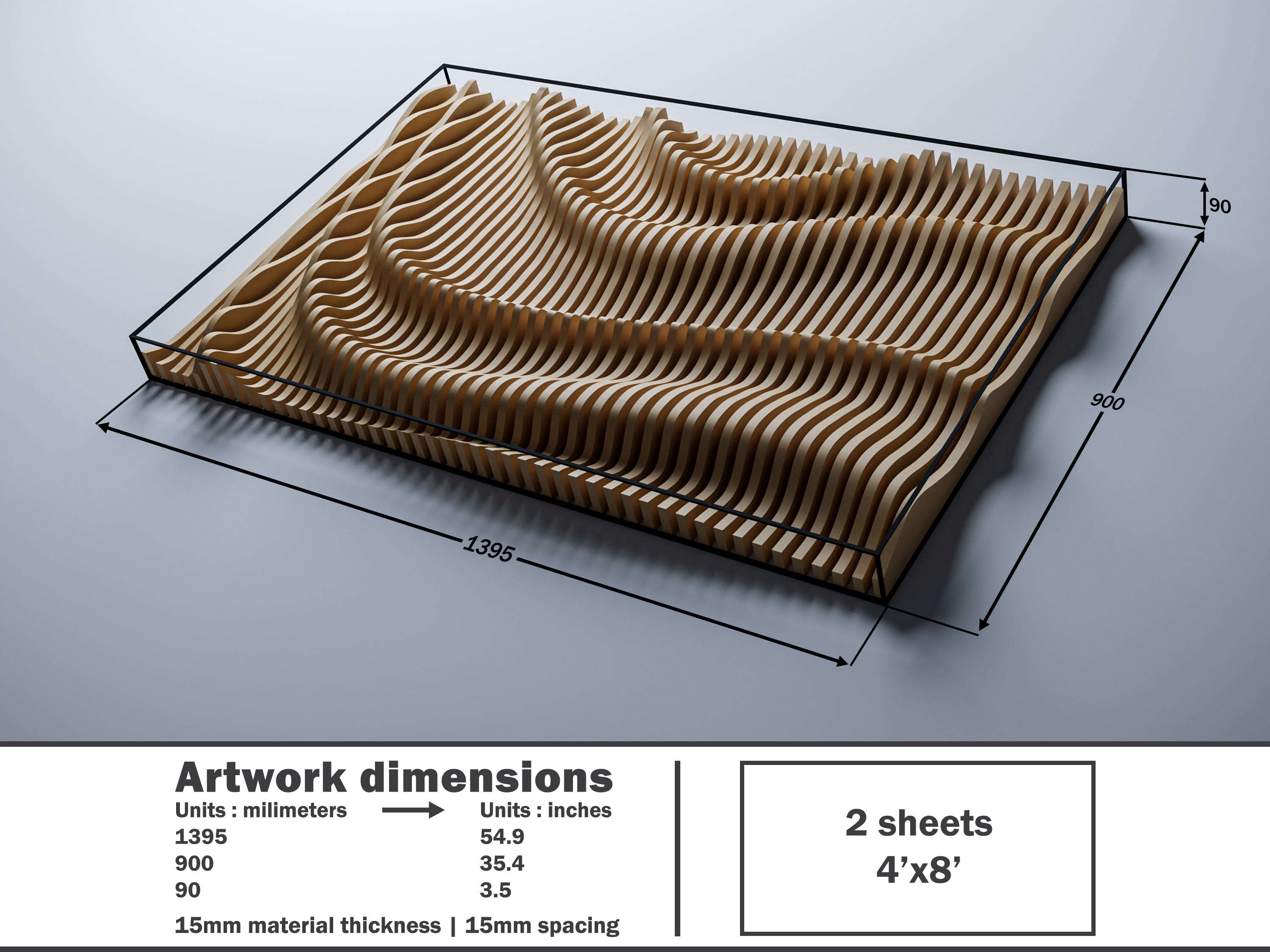

  • PP6 parametric panel on plain grey backround with dimensions visible. 1395×900×90mm, 15mm material thickness and spacing, 2 sheets 4×8'

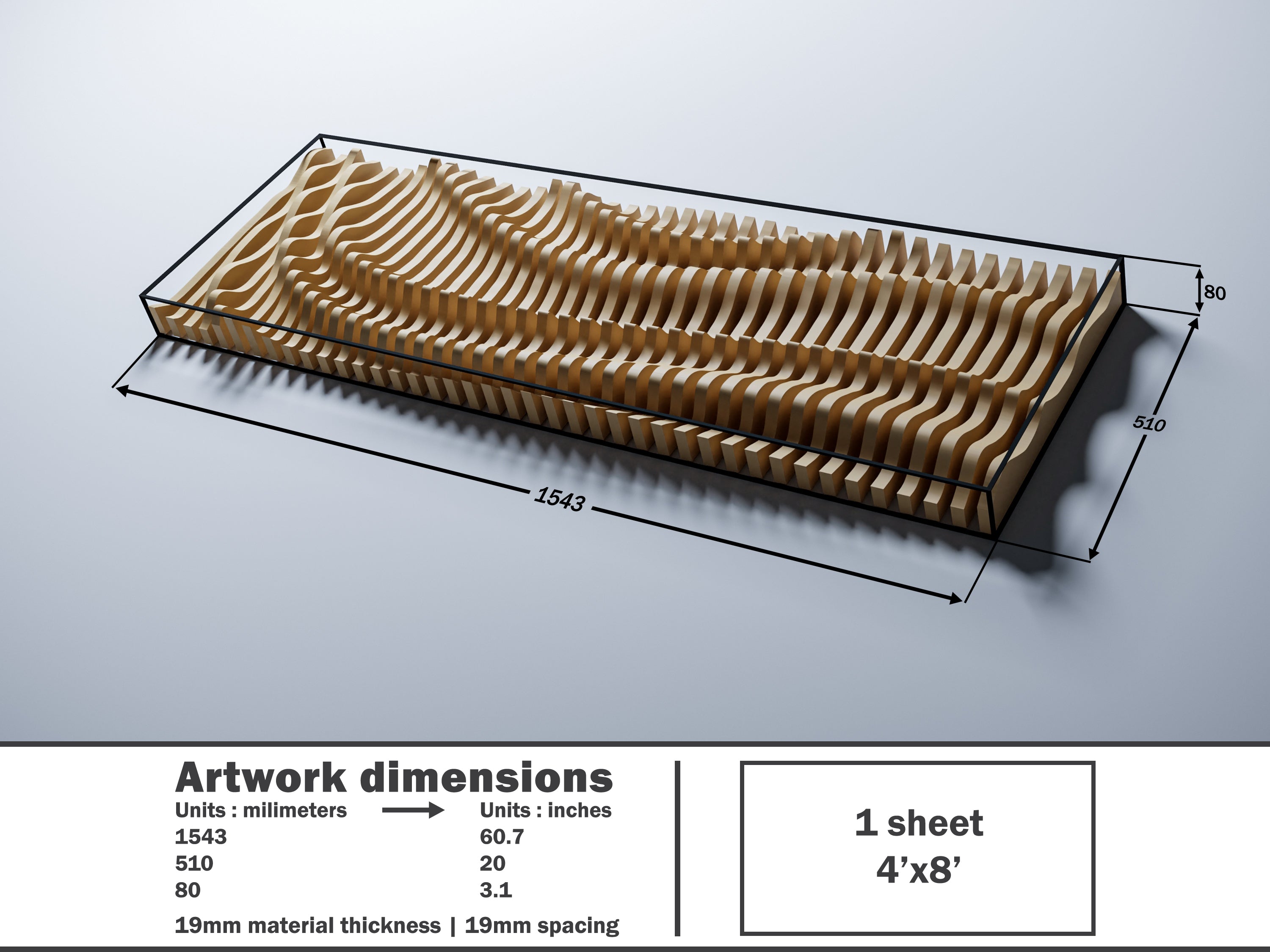

  • PP6 parametric panel dimensions 1543×510×80mm, 19mm material thickness and spacing, 1 sheet 4×8'
  • PP6 parametric wave wall panel. natural wood finish render, diagonal flow pattern, front view full scale
  • PP6 parametric wave wall panel solid black painted finish render, diagonal sweep with deep shadow contrast
  • PP6 parametric wave panel dark finish, slight angle orientation showing the wave motion
  • PP6 parametric wave wall panel, white finish render, diagonal wave sweep corner to corner, living room with herringbone floor
  • PP6 parametric wave wall art built by CNC maker - natural wood finish, residential white wall with window, with review prizing the BFW shop owner.
  • PP6 parametric wave wall art built by BFW customer, natural wood finish, residential dark wall installation
  • PP6 parametric wave panels installed as suspended ceiling feature white painted, restaurant installation
  • A 3D-rendered parametric panel with dimension lines and a bottom text panel showing artwork dimensions in millimeters thickness and spacing and sheet count
  • PP6 parametric panel on plain grey backround with dimensions visible. 1395×900×90mm, 15mm material thickness and spacing, 2 sheets 4×8'
  • PP6 parametric panel dimensions 1543×510×80mm, 19mm material thickness and spacing, 1 sheet 4×8'
Parametric Wall Art CNC Files ,Wavy Panel for CNC Router and Laser • PP6

Parametric Wall Art CNC Files ,Wavy Panel for CNC Router and Laser • PP6

€16,99

BFW files are built for execution, not just shape. Clean geometry, ready to load and run. Message me when you're stuck. You get a direct answer from someone who has run production CNC on industrial 3 to 5-axis machines.
What’s Included

Digital files only. No physical item will be shipped.

Formats: AI, DXF, EPS, PDF, SVG

You receive:
- Vector cutting files built for CNC router and laser workflows
- Organized, labeled layers. Clear structure, ready to load and run.
- Back panel layout included
- Three sizes in one purchase:
1 sheet (1543×510mm),
2 sheets (1395×900mm),
4 sheets (2322×1160mm) — all nested for standard 4×8' sheets
Machine & Workflow Fit

Compatible with: CNC Router, Laser Cutter, Plasma Cutter,
and any machine that follows 2D contour paths

2D contour paths only, not compatible with 3D carving toolpaths or 3D printers

Supported software: VCarve, Aspire, Fusion 360, Carveco,
Carbide Create, AutoCAD, LightBurn

Different machine? Send a message — the file can be adapted.
Dimensions / Scaling

Three sizes included:

Small:
Width: 1543 mm (60.7")
Height: 510 mm (20")
Depth: 80 mm (3.1")
1 sheet, 4×8' format
19mm material thickness | 19mm spacing

Medium:
Width: 1395 mm (54.9")
Height: 900 mm (35.4")
Depth: 90 mm (3.5")
2 sheets, 4×8' format
15mm material thickness | 15mm spacing

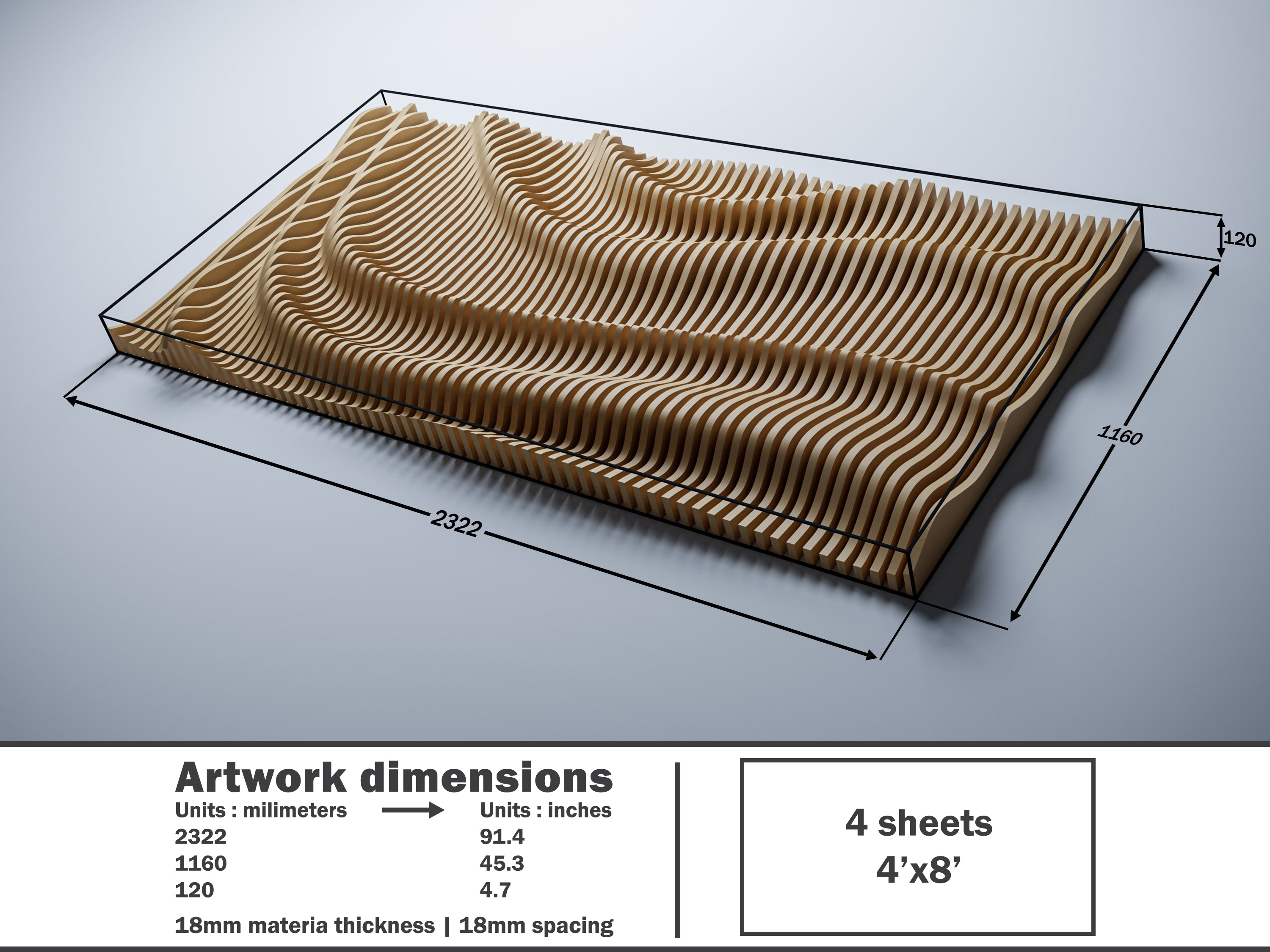

Large:
Width: 2322 mm (91.4")
Height: 1160 mm (45.3")
Depth: 120 mm (4.7")
4 sheets, 4×8' format
18mm material thickness | 18mm spacing

Scaling: height and depth adjust easily. Width is more limited depends on material thickness and spacing. Large changes alter the wave character.
For a custom size tailored to your setup, Custom Work is the better path.
Notes Before You Buy
  • Digital product only
  • Files are delivered instantly after purchase

Please check that the included formats match your workflow before purchase
License & Usage

You may use the files to create physical products for personal or commercial use.
You may not resell, share, create derivative designs or redistribute the digital files.
Stuck? Here's what happens

Message me with what you're trying to do, your machine, and your material. You get a direct answer from someone who has run production CNC on industrial 3 to 5-axis machines, applied to hundreds of maker projects.

Creator Lab members bring questions into the community and get answers from me and from other CNC machine owners running the same equipment. $5/month, $5 File Credit included.

For changes bigger than a message can handle, Custom Work picks it up.

Want someone to build it for you entirely? Order a finished piece.

Parametric wall art for CNC routers and lasers

One buyer suspended PP6 from a commercial ceiling. White painted panels forming a sweeping wave overhead in a dining space. Another cut it in natural wood and hung it on a dark wall at home. A third installed it in a studio entrance, the diagonal flow catching window light from the side. Same file, three installs, nothing in common except the cut. PP6 is the file. It reads as motion from across the room. Three sizes included: one sheet for accent pieces up to four sheets for room-scale feature walls. Cut in plywood, MDF, or solid wood. Works with CNC routers and laser cutters. Compatible with VCarve, Aspire, Fusion 360, LightBurn, Carbide Create, and similar. If you get stuck on file setup or cutting parameters, message me. I've run production CNC on industrial 3 to 5-axis machines for years before BFW. Creator Lab handles the ongoing questions for $5/month.
