JB1+JB3+JB5 CNC heart shaped box complete collection, three lid designs,

CNC heart box bundle, stepped, V-carved, and epoxy art lids • JB1+JB3+JB5

€20,99

CNC heart box bundle, stepped, V-carved, and epoxy art lids • JB1+JB3+JB5

Name: CNC heart box bundle, stepped, V-carved, and epoxy art lids • JB1+JB3+JB5
Brand: bfwcnc
Price: 20.99 EUR
Availability: InStock

€20,99

BFW files are built for execution, not just shape. Clean geometry, ready to load and run. Message me when you're stuck. You get a direct answer from someone who has run production CNC on industrial 3 to 5-axis machines.

Digital files only. No physical item will be shipped.

This bundle contains 3 complete products.

JB1 Stepped profile lid:
Formats: DXF, SVG, AI, EPS, STL
- Vector files for CNC router workflows
- Two STL files: lid for 3D carving or printing,
base for 3D printing
- PDF guide: key dimensions, contour selection,
V-carve setup, and pocketing flow

JB3 V-carved lid:
Formats: DXF, SVG, AI, EPS, STL
- Vector files for CNC router workflows
- Two STL files: lid for 3D carving or printing,
base for 3D printing
- PDF guide: key dimensions, contour selection,
V-carve setup, and pocketing flow

JB5 Epoxy art lid:
Formats: DXF, SVG, AI, EPS, STL
- Vector files for CNC router workflows
- Two STL files: lid for 3D carving or printing,
base for 3D printing
- PDF guide: key dimensions, contour selection,
V-carve setup, and pocketing flow

Compatible with: CNC Router (V-carve and 3D pocketing toolpaths),
3D Printer

Not compatible with: laser cutters

Vector files: v-carving and pocketing contours for CNC router workflows
STL files: 3D carving on CNC router or 3D printing

Supported software: VCarve, Aspire, Fusion 360, Carveco,
Carbide Create, AutoCAD, Cura, PrusaSlicer

Different machine? Send a message. The files can be adapted.

Shared base: JB1, JB3, and JB5 use the same base.
All three lids are interchangeable on that base.

Shared dimensions:
Width: 155mm (6.1")
Depth: 137mm (5.4")
Base height: 45mm (1.8")

Total height closed:
JB1 62mm (2.4")
JB3 56mm (2.2")
JB5 58mm (2.3")

Scale all components proportionally. For non-standard sizes
or lid thickness changes, send a message. Custom sizing available.

Digital product only
Files are delivered instantly after purchase

Please check that the included formats match your workflow before purchase

You may use the files to create physical products for personal or commercial use.
You may not resell, share, create derivative designs or redistribute the digital files.

Message me with what you're trying to do, your machine, and your material. You get a direct answer from someone who has run production CNC on industrial 3 to 5-axis machines, applied to hundreds of maker projects.

Creator Lab members bring questions into the community and get answers from me and from other CNC machine owners running the same equipment. $5/month, $5 File Credit included.

For changes bigger than a message can handle, Custom Work picks it up.

Want someone to build it for you entirely? Order a finished piece.

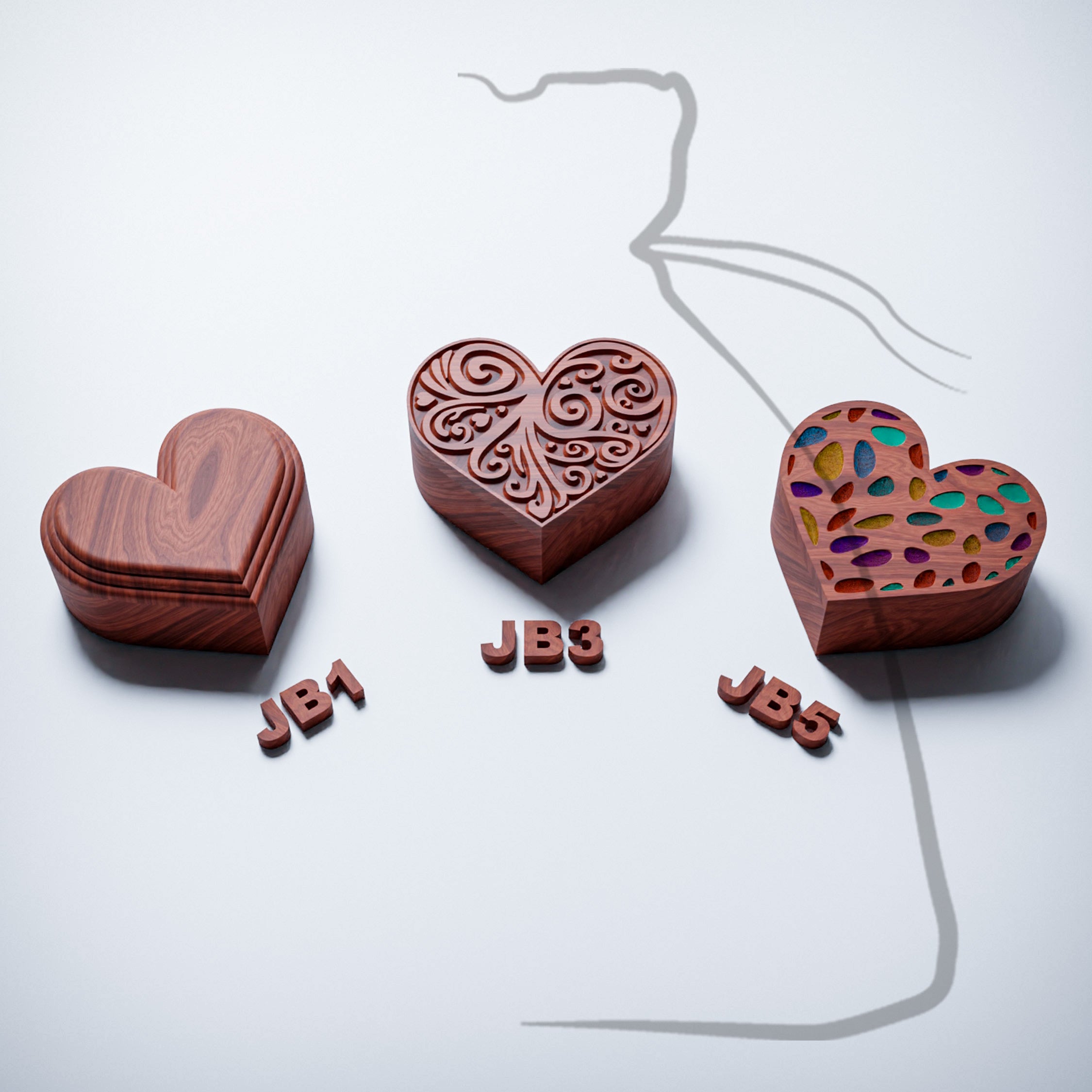

Complete heart box collection, three lid designs for CNC routers and 3D printers

Three heart box designs. One shared base. All three lids swap onto it.

JB1 has a stepped concentric lid. Clean geometry, no engraving, no fill. Craig ran it in natural hardwood as his first CNC box build. Willem cut it on a CNC router.

JB3 uses a V-bit. Dense ornate scrollwork covers the full lid face, carved end to end. Jan cut it in walnut. Richard printed it in wood filament and gave it as a Valentine's gift.

JB5 is built for epoxy art. Organic carvings scatter across the heart lid face, each shaped to hold poured epoxy. Jamie cut it in oak with red epoxy fill.

This bundle contains three complete products, each with DXF, SVG, AI, EPS + two STL files for the lid and base, and a PDF guide. All three run on CNC routers and 3D printers. None is laser compatible. If you get stuck message me I've run production CNC on industrial 3 to 5-axis machines for years before BFW. Creator Lab handles the ongoing questions for $5/month.
